Objective

IP research is the first and most critical step in receiving a patent.
Patentest Inc offers leading web application based IP research services to inventors, law firms and corporates.

Patentest operates in Europe and the US, providing unique web application services in different languages, out of different web domains and through a wide network of partners.

As Patentest’s business and partner network grew extensively, the company needed a robust and scalable architecture and deployment to replace its existing web application deployment and support its expanding user base.

Challenges

The Patentest web application is a complex server technology, combining proprietary web services of different web technologies. The technology also includes integration with leading CRM web applications and IP repository APIs.

The Company’s main challenges were to support its complex technology while implementing a secure, scalable and robust architecture.
It was also extremely important to provide a solution, able to serve users out of different web domains, while utilizing the same service infrastructure.

Solution

Patentest partnered with Wiseman Software to implement its web application over cloud infrastructure.

Following a detailed analysis of Patentest’s infrastructure requirements, Wiseman Software recommended using the Amazon Web Services (AWS) cloud infrastructure for the implementation of Patentest’s complex web application.

Amazon Web Service (AWS) were chosen because of their cloud infrastructure maturity; scaling capabilities; rich set of data repository services and intrinsic support for security at all architecture levels.

The complete implementation solution was crafted based upon Wiseman Software’s Cloud-First development methodology. Based upon the methodology key elements, AWS cloud infrastructure services were chosen wherever appropriate.



Click to Enlarge

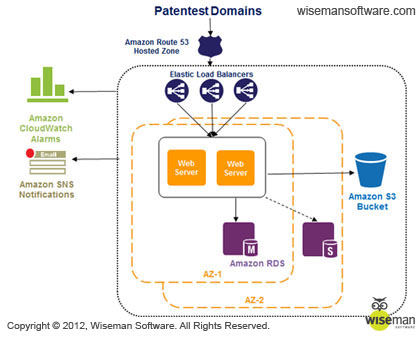

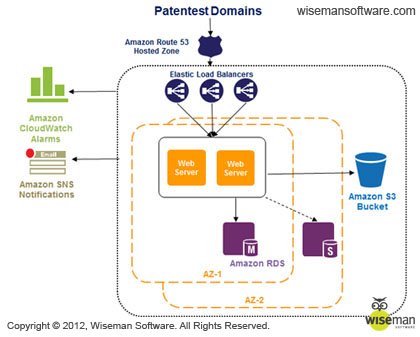

Figure 1 – Schematic architecture and design of Patentest’s web application over AWS cloud services infrastructure
Webservers

The Patentest web application offers a wide range of IP research and patent communication services. These are implemented over different platforms – especially PHP on Apache HTTP server and Java™ on Tomcat.
A key necessity in the required solution was to provide a scalable and robust solution while utilizing the computational resources to the maximum.

In order to support this set of requirements, Wiseman Software designed and implemented the cloud architecture solution built over several AWS services as described below.

The different web domains served by the web application are managed using AWS Route 53 service and each domain is represented by an instance of AWS ELB load balancer.
A group of AWS EC2 instances are deployed as the service front-end web-servers, installed with Apache HTTP server (for PHP) and Tomcat (for Java™).

In order to maximize usage of cloud resources, each EC2 web server is joined into all the load balancers. The application layer on the web server identifies the requested web domain, ensuring the appropriate processing and output.

Database and Data Repository

The main system database resides on AWS RDS MySQL deployment and is configured for robustness and fault tolerance, as a multi-zone deployment.
Secured buckets are used over AWS S3 for storing and streaming research findings.

Results

The new cloud infrastructure deployment improved Patentest’s web application response performance and uptime significantly.
Patentest is now in a position where it can serve a significant user load, scale easily when required, and able to provide complex integration capabilities to its partner network.

As a result of Patentest’s web application performance improvement and client satisfaction, Wiseman Software was selected as implementor for its innovative and ambitious, next-generation IP research web application.
